Cylone™ Aspiration Catheter

OVERVIEW
Cylone™ Aspiration Catheter

The Cylone™ aspiration catheter, featuring an end-to-end coil and braid construction, ensures easy navigation to the M1 and M2 segments and effective and atraumatic clot removal for patients experiencing acute ischemic stroke

Cylone™ Aspiration Catheter

CYLONE™ ASPIRATION CATHETER FEATURES

CYLONE™ ASPIRATION CATHETER FEATURES

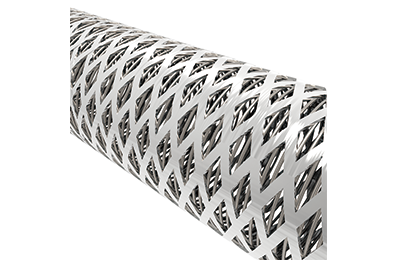

End-to-End
Nitinol Coil + Braid Design

Braid improves torsion control and tensile strength of the device.

Aspiration Catheter

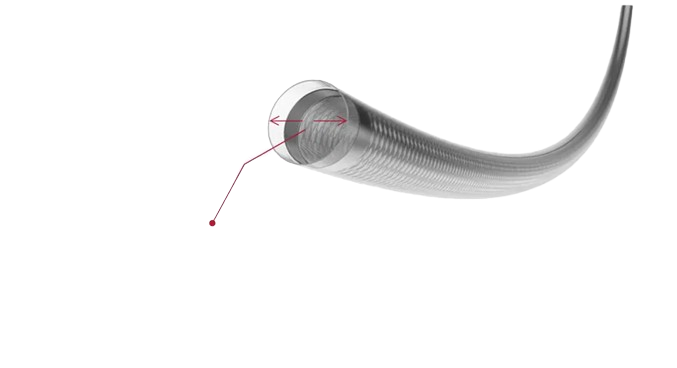

Inner coil layer provides superior kink resistance and  enhances radial force under negative pressure resulting in optimized thrombus aspiration ability

Inner coil layer
  • Excellent navigability

  • Great pushability

  • Maintain lumen integrity during navigation and aspiration




Cylone™ Aspiration Catheter

Multi transition zones enhance force transmission and provide extra support throughout aortic arch

  • Lower bending rigidity at distal segment - Softer distal segment allows Cyclone to overcome the most tortuous anatomies.


  • Greater bending rigidity at proximal segment -Excellent pushability and push/pull control

ORDERING INFORMATION
Product Code

Catheter Size

(French)

OD(in/mm) ID(in/mm)

Working length

       (cm)

TGC070-06-11560.0825/2.100.070/1.80115
TGC070-06-12560.0825/2.100.070/1.80125
TGC070-06-13060.0825/2.100.070/1.80130
TGC070-06-13560.0825/2.100.070/1.80135
TGC055-05-11550.068 / 1.700.055/1.40115
TGC055-05-12550.068 / 1.700.055/1.40125
TGC055-05-13050.068 / 1.700.055/1.40130
TGC055-05-13550.068 / 1.700.055/1.40135


Cylone™ Aspiration Catheter Resources

Cylone™ Aspiration Catheter Resources

INDICATION
Cylone™ Aspiration Catheter

The Ton-bridge Aspiration Catheter is intended for use in the removal/aspiration of emboli and thrombi from selected blood vessels in the arterial system including the peripheral and neurovasculatures. Moreover, the Ton-bridge Aspiration Catheter can be used to facilitate introduction of diagnostic or therapeutic agents.
